Features / Strong points
Direct cold/ hot Water Heating System
Automatic Water Sensor
Selection of Good Design Marks.
Alkali water generator with four filters
Using platinum-plated titanium electrode plates
An Implication of Electrode Plate for Ion-Sugar Electrode
PH Automated Control System
2 levels of cold alkali water, 4 levels of alkali water,
8 kinds of purified water were extracted.
What kind of water are you drinking?
Drinking KYK’s alcaline water helps to improve the 4 major gastrointestinal diseases.

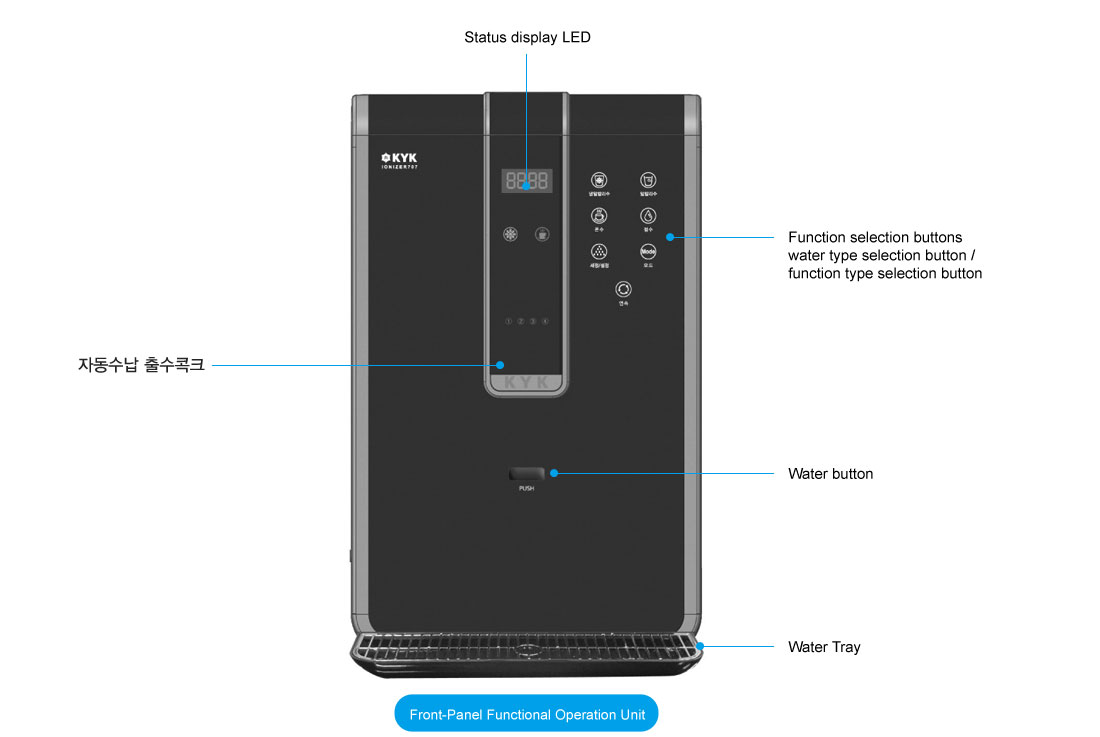

Name/Function
INSTANT HEATING AND COOLING ALKALINE IONIZER
Good design ionizer exhibited in Musee du Louvre, France
High-end ionizer with instant heating and vacuum cooling
Auto-Hide Tap with UV sterilization (Optional)
Optimal 4 filter purification system to remove limestone
PH Auto-Control System
Standards & Specification
| S.No. | Specification | Description/Details |
|---|---|---|
| 1 | MRP | INR 3,75,000 (Inclusive of 18% GST) |
| 2 | Product | Alkaline Water Ionizer Hot & Cold |
| 3 | Model | KYK 777 Instant Continuous Hot & Cold |
| 4 | Size/Weight | Size : 300(W)mm X 487(H)mm X 465(D)mm / Weight : 20kg |
| 5 | Manufacturing Company | KYK Co. Ltd. (440-407 Sangdaewon-Dong Joongwon-Gu, Sungnam City, Kyunggi-Do, Korea) |
| 6 | Manufacturing No./Date | See the backside of product |
| 7 | Connection Type | Stationary/ Direct connection to tap water |
| 8 | Installation | Counter-Top |
| 9 | Water Dispensing Method | Tankless System / Touch Button / Fully Automatic |
| 10 | Rated Voltage | AC220V, 50Hz~60Hz |
| 11 | No. Of Plates | 7 Solid Hybrid Titanium-Platinum Plates with purity 99.99%, thickness 0.57 mm of Platinum |
| 12 | e-cell | Solid Titanium Platinum Anode + Cathode |
| 13 | Electrolysis Ability | 2 levels of cold alkaline water, heated water. 4 levels of alkaline water, 2 levels of acidic water, filtered only water |
| 14 | Cleaning | Automatic Pole Exchange Cleaning (APEC) after every use by Mycom™ |
| 15 | Purity of Plates | 99.99% (Vale, London) |
| 16 | Display | Step-by-step display / Filter Usage / Mode display |
| 17 | Levels | 4,000 programmable pH/ORP Levels |
| 18 | Filter Control | Embedded filter chip to check consumption |
| 19 | ORP (mV) | Max.: -750mV, Avg.: -450mV |
| 20 | pH Value | 4pH - 10pH without salt/chemicals (as per US FDA standards) |
| 21 | Medical Device approval Code | No. Huh-13-1327 |
| 22 | MSDS (Material Safety Data Sheet) | Available |
| 23 | Filter Capacity | Quad filtration 9,000/9,000/9,000/9,999 Litres; No time limit |
| 24 | Indicate Filter Life | When the available usage amount has been reached to 70 Ltr |
| 25 | Flow Rate/Pressure | Continuous 2-3 L/m; 3.0kgf/cm2 with 5-80 Degrees |
| 26 | Electrical Consumption/Power | 180 VA/ 2,900W during Hot & Cold Operation |
| 27 | Chemicals/Salt | No |
| 28 | Control Type | Touch Sensor |
| 29 | Electrical Safety Certification No. | XH070308-17007A |
| 30 | Certifications | Medical Grade: US FDA (3005720077), ISO 13485 (MK0000124), GMP, 100+ Certifications |
| 31 | Structure | FDA approved BPA-free grade plastic |
| 32 | Power Source Protector | Fuse |
| 33 | Over-Current/Temp. Detector | Automatically stops the output of electrolytic cell |
| 34 | Colours | Black |
